RFQ02790 (Vision Information)

General Information
Component ID: RFQ02790
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 185.0
Body Width (1/1000″): 115.0
Component Height (1/1000″): 70.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 47995019
FJ Alternate Nozzle: 47995019
Accuracy: High
Pre-Orient: No
FlexJet Tact Control: Fast

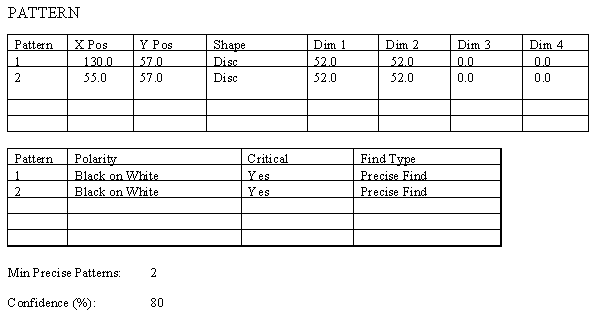

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: On – Axis – Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit: 0
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 6
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: Do Not Use
Flexjet OTHC Camera/Mag: OTHC/No Preference
Precise Find Search X (1/1000″):
Precise Find Search Y (1/1000″):
Pick Information
Reference X (1/1000″): 92.0
Reference Y (1/1000″): 57.0
Feeder Information
Default Feeder:
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
Flux Information
Dot Size (ml): 0
Speed: 0
Dry Delay (seconds): 0
Settle Delay (seconds): 0
