RFQ01658 (Vision Information)

General Information
Component ID: RFQ01658
Component Type: SOIC
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 1576.0
Component Width (1/1000″): 530.0
Body Length (1/1000″): 1335.0
Body Width (1/1000″): 290.0
Component Height (1/1000″): 435.0
Placement Pressure (grams): 150
Primary Nozzle: 49523622
Alternate Nozzle: 49523622
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

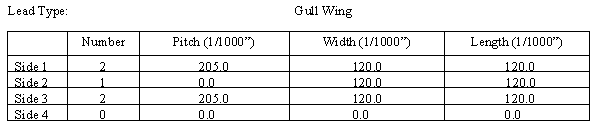

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″): 0.0
Lead Tolerance Across Body (1/1000″): 0.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 6
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 0
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: Standard/4.0 Mil
Flexjet OTHC Camera/Mag: Do Not Use
Feeder Information
Default Feeder:
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
