RFQ00692 (Vision Information)

General Information
Component ID: RFQ00692
Component Type: SOIC
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 250.0
Component Width (1/1000″): 203.0
Body Length (1/1000″): 190.0
Body Width (1/1000″): 203.0
Component Height (1/1000″): 45.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 49079043
FJ Alternate Nozzle: 49079043
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

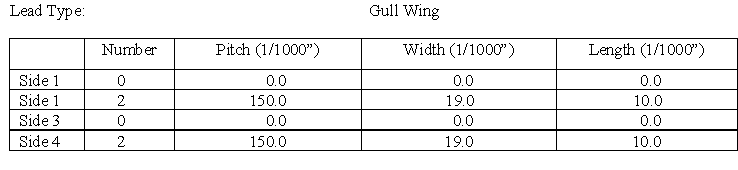

Lead Information
Vision Information
Lead Inspection:
Lead Tolerance From Body (1/1000″):
Lead Tolerance Across Body (1/1000″):
Lead Spacing Tolerance (1/1000″):
Lead Len Positive Tolerance (1/1000″):
Lead Len Negative Tolerance (1/1000″):
Coplanarity Tolerance (1/1000″):
Colinearity Tolerance (1/1000″):
P2P/NCC8 Ligthing Type:
P2P/NCC8 Ligthing Level:
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type:
P2P/NCC8 Camera/Mag:
Flexjet OTHC Camera/Mag:
Feeder Information
Default Feeder:
Default Rotation in Feeder (degrees):
Reject Station:
