RFQ00584 (Vision Information)

General Information
Component ID: RFQ00584
Component Type: Melf
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 205.0
Body Width (1/1000″): 141.0
Component Height (1/1000″): 141.0
Placement Pressure (grams): 150
Primary Nozzle: KEYED49079003
Alternate Nozzle: KEYED49079003
FJ Primary Nozzle: KEYED49079003
FJ Alternate Nozzle: KEYED49079003
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

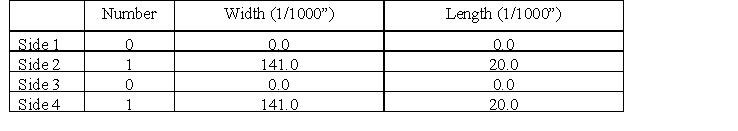

End Cap Information
End Cap Type: No Lead
Vision Information
P2P/NCC8 Lighting Type: Front-Lit
P2P/NCC8 Lighting Level: 4
Flexjet OTHC Front-Lit: 2
Flexjet OTHC Side-Lit: 2
Flexjet OTHC On-Axis-Lit: 2
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: OTHC/2.6 Mil
Upside Down Detection:
Threshold:
Feeder Information
Default Feeder: HD12MM
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
