RFQ00471 (Vision Information)

General Information
Component ID: RFQ00471
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 1038.0
Body Width (1/1000″): 343.0
Component Height (1/1000″): 500.0
Placement Pressure (grams): 150
Primary Nozzle: 51305103
Alternate Nozzle: 51305103
FJ Primary Nozzle: 48503407
FJ Alternate Nozzle: 48503407
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control:

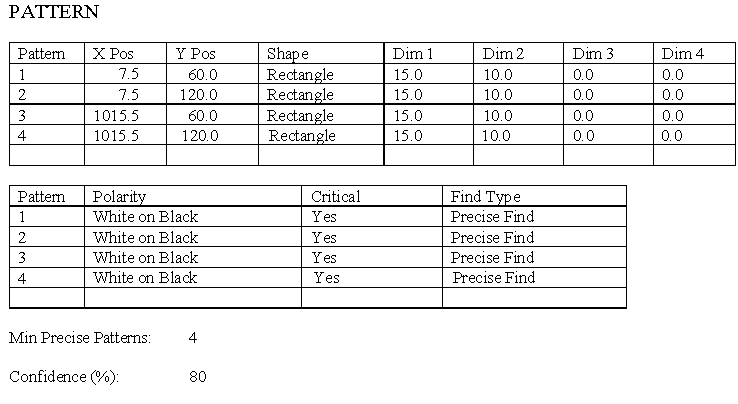

Pattern Information
Vision Information
Pattern Inspection:
Lead Tolerance X (1/1000″):
Lead Tolerance Y (1/1000″):
Relative Distance (1/1000″):
P2P/NCC8 Ligthing Type:
P2P/NCC8 Ligthing Level:
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type:
P2P/NCC8 Camera/Mag:
Flexjet OTHC Camera/Mag:
Precise Find Search X (1/1000″):
Precise Find Search Y (1/1000″):
Pick Information
Reference X (1/1000″):
Reference Y (1/1000″):
Feeder Information
Default Feeder:
Default Rotation in Feeder (degrees):
Reject Station:
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
