RFQ00006 (Vision Information)

General Information
Component ID: RFQ00006
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 1040.0
Body Width (1/1000″): 1095.0
Component Height (1/1000″): 100.0
Placement Pressure (grams): 150
Primary Nozzle: 51305103
Alternate Nozzle: 51305103
FJ Primary Nozzle: 47561104
FJ Alternate Nozzle: 47561104
Accuracy: High
Pre-Orient: No
FlexJet Tact Control: Fast

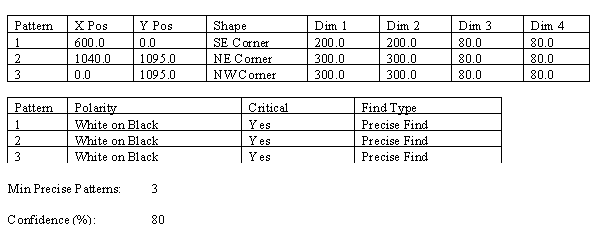

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front – LIt
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit: 0
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 0
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: Standard/4.0 Mil
Flexjet OTHC Camera/Mag: Do Not Use
Precise Find Search X (1/1000″): 10.0
Precise Find Search Y (1/1000″): 10.0
Pick Information
Reference X (1/1000″): 290.0
Reference Y (1/1000″): 210.0
Feeder Information
Default Feeder: Tape
Default Rotation in Feeder (degrees):
Reject Station: Belt Reject
Flux Information
Dot Size (ml): 0
Speed: 0
Dry Delay (seconds): 0
Settle Delay (seconds): 0
