Log 927 (Vision Information)



General Information
Component ID: Log927
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 470.0
Body Width (1/1000″): 274.0
Component Height (1/1000″): 70.0
Placement Pressure (grams): 150
Primary Nozzle: 47027048
Alternate Nozzle: 47027048
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: High
Pre-Orient:
FlexJet Tact Control:

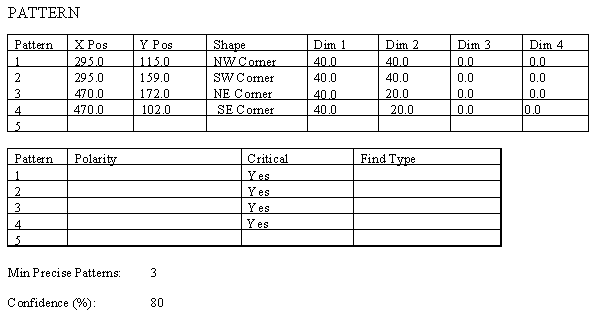

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: 4.0 Mil per Pixel
Flexjet OTHC Camera/Mag:
Precise Find Search X (1/1000″):
Precise Find Search Y (1/1000″):
Pick Information
Reference X (1/1000″): 422.0
Reference Y (1/1000″): 137.0
Feeder Information
Default Feeder: Matrix Tray
Default Rotation in Feeder (degrees): 0
Reject Station: Bucket
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
