Log 308 (Vision Information)

General Information
Component ID: Log 308
Component Type: SOIC
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 429.0
Component Width (1/1000″): 177.0
Body Length (1/1000″): 429.0
Body Width (1/1000″): 141.0
Component Height (1/1000″): 225.0
Placement Pressure (grams): 150
Primary Nozzle: 46512203
Alternate Nozzle: 46512203
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: High
Pre-Orient: No
FlexJet Tact Control: Fast

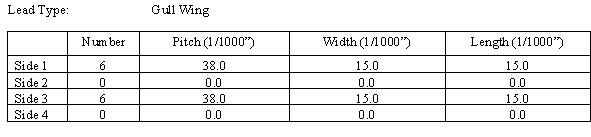

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″):
Lead Tolerance Across Body (1/1000″):
Lead Spacing Tolerance (1/1000″):
Lead Len Positive Tolerance (1/1000″):
Lead Len Negative Tolerance (1/1000″):
Coplanarity Tolerance (1/1000″):
Colinearity Tolerance (1/1000″):
P2P/NCC8 Ligthing Type: Front – Lit
P2P/NCC8 Ligthing Level: 5
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: 4.0 Mil
Flexjet OTHC Camera/Mag:
Feeder Information
Default Feeder: 24mm Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
