A557 (Vision Information)

General Information
Component ID: A557
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 125.0
Body Width (1/1000″): 200.0
Component Height (1/1000″): 220.0
Placement Pressure (grams): 150
Primary Nozzle: 47432003
Alternate Nozzle: 47432003
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control:

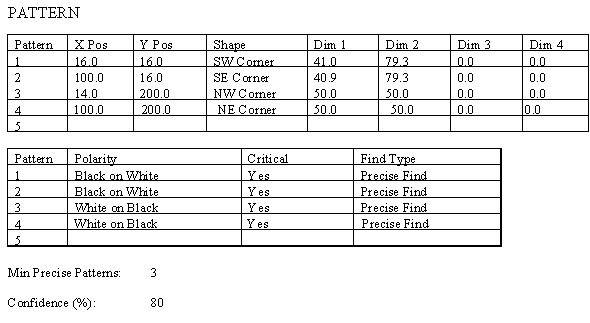

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: 4.0 Mil per Pixel
Flexjet OTHC Camera/Mag:
Precise Find Search X (1/1000″): 0.0
Precise Find Search Y (1/1000″): 0.0
Pick Information
Reference X (1/1000″): 62.5
Reference Y (1/1000″): 180.0
Feeder Information
Default Feeder: Hover/16X12SPL
Default Rotation in Feeder (degrees): 0
Reject Station: Bucket
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
