A2692 (Vision Information)

General Information
Component ID: A2692
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 1089.0
Body Width (1/1000″): 570.0
Component Height (1/1000″): 160.0
Placement Pressure (grams): 150
Primary Nozzle: 46424407
Alternate Nozzle: 46424407
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control:

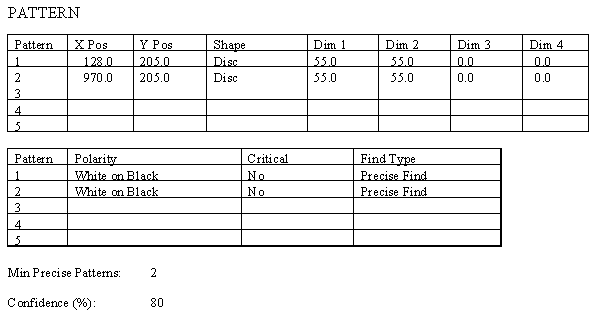

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 2
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag:
Precise Find Search X (1/1000″): 20.0
Precise Find Search Y (1/1000″): 20.0
Pick Information
Reference X (1/1000″): 544.5
Reference Y (1/1000″): 285.0
Feeder Information
Default Feeder: 44mm/24mm Tape
Default Rotation in Feeder (degrees): 180
Reject Station: Manual RS
Flux Information
Dot Size (ml): 0
Speed: 0
Dry Delay (seconds): 0
Settle Delay (seconds): 0
