A2611 (Vision Information)

General Information
Component ID: A2611
Component Type: UIC-A
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 170.0
Component Width (1/1000″): 145.0
Body Length (1/1000″): 170.0
Body Width (1/1000″): 93.0
Component Height (1/1000″): 75.0
Placement Pressure (grams): 150
Primary Nozzle: 47717020
Alternate Nozzle: 47717020
FJ Primary Nozzle: 48316004
FJ Alternate Nozzle: 48316004
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control:

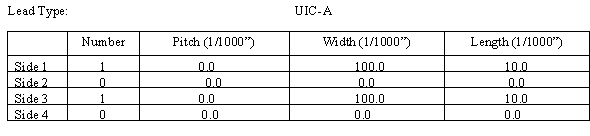

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″): 0.0
Lead Tolerance Across Body (1/1000″): 0.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 0
Flexjet OTHC Front-Lit: 5
Flexjet OTHC Side-Lit: 3
Flexjet OTHC On-Axis-Lit: 3
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: OTHC/No Preference
Feeder Information
Default Feeder: 12mm
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
