A2571 (Vision Information)

General Information
Component ID: A2571
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 1502.0
Body Width (1/1000″): 1004.0
Component Height (1/1000″): 240.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 48830007
FJ Alternate Nozzle: 48830007
Accuracy: High
Pre-Orient: No
FlexJet Tact Control: Fast

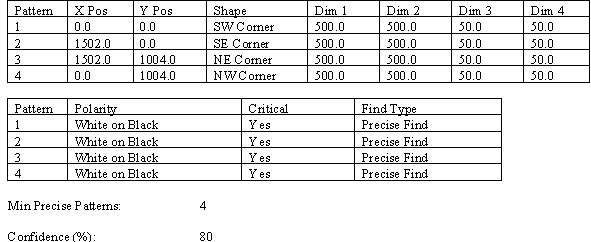

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″):
Lead Tolerance Y (1/1000″):
Relative Distance (1/1000″):
P2P/NCC8 Ligthing Type: Front – Lit
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit: 0
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 0
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: 4.0 Mil
Flexjet OTHC Camera/Mag: Do Not Use
Precise Find Search X (1/1000″): 10.0
Precise Find Search Y (1/1000″): 10.00
Pick Information
Reference X (1/1000″): 751.0
Reference Y (1/1000″): 502.0
Feeder Information
Default Feeder: Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
