A2559 (Vision Information)

General Information
Component ID: A2559
Component Type: SOIC
Description: .90 X .12 Ribbon
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 906.0
Component Width (1/1000″): 195.0
Body Length (1/1000″): 906.0
Body Width (1/1000″): 100.0
Component Height (1/1000″): 250.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 48316003
FJ Alternate Nozzle: 48316003
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

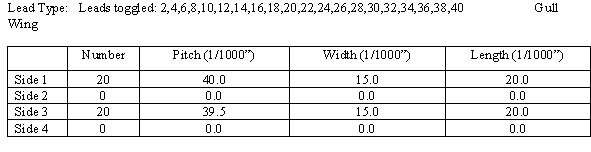

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″):
Lead Tolerance Across Body (1/1000″):
Lead Spacing Tolerance (1/1000″):
Lead Len Positive Tolerance (1/1000″):
Lead Len Negative Tolerance (1/1000″):
Coplanarity Tolerance (1/1000″):
Colinearity Tolerance (1/1000″):
P2P/NCC8 Ligthing Type: Front Lit
P2P/NCC8 Ligthing Level: 0
Flexjet OTHC Front-Lit: 7
Flexjet OTHC Side-Lit: 7
Flexjet OTHC On-Axis-Lit: 7
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: Do Not Use
Flexjet OTHC Camera/Mag: OTHC/No preference
Feeder Information
Default Feeder: 44X12MULTIPCHf
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
