A2541 (Vision Information)

General Information
Component ID: A2541
Component Type: Melf
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 210.0
Body Width (1/1000″): 146.0
Component Height (1/1000″): 146.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 49079003
FJ Alternate Nozzle: 49079003
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

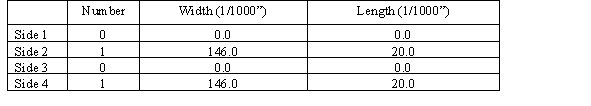

End Cap Information
End Cap Type: UIC A
Vision Information
P2P/NCC8 Lighting Type: Front – Lit
P2P/NCC8 Lighting Level: 4
Flexjet OTHC Front-Lit: 6
Flexjet OTHC Side-Lit: 6
Flexjet OTHC On-Axis-Lit: 6
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: OTHC/2.6 Mil
Upside Down Detection:
Threshold:
Feeder Information
Default Feeder: 12mm Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
