A2490 (Vision Information)

General Information
Component ID: A2490
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 271.0
Body Width (1/1000″): 241.0
Component Height (1/1000″): 83.0
Placement Pressure (grams): 150
Primary Nozzle: 48830096
Alternate Nozzle: 48830096
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

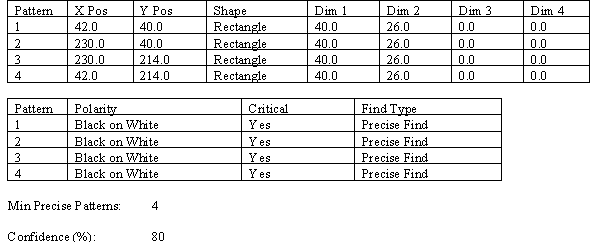

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″):
Lead Tolerance Y (1/1000″):
Relative Distance (1/1000″):
P2P/NCC8 Ligthing Type: Front – Lit
P2P/NCC8 Ligthing Level: 2
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag:
Precise Find Search X (1/1000″): 10.0
Precise Find Search Y (1/1000″): 10.0
Pick Information
Reference X (1/1000″): 135.5
Reference Y (1/1000″): 120.5
Feeder Information
Default Feeder: Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
