A2441 (Vision Information)

General Information
Component ID: A2441
Component Type: SOT
Description: DDPACK
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 400.0
Component Width (1/1000″): 563.0
Body Length (1/1000″): 400.0
Body Width (1/1000″): 339.0
Component Height (1/1000″): 178.0
Placement Pressure (grams): 150
Primary Nozzle: 45466931
Alternate Nozzle: 45466931
FJ Primary Nozzle: 47561103
FJ Alternate Nozzle: 47561103
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

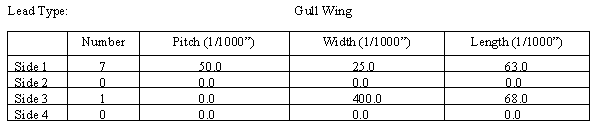

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″): 0.0
Lead Tolerance Across Body (1/1000″): 0.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit: 1
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 2
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: No Preference
Feeder Information
Default Feeder:
Default Rotation in Feeder (degrees): 90
Reject Station: Belt Reject
