A2236 (Vision Information)

General Information
Component ID: A2236
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 580.0
Body Width (1/1000″): 100.0
Component Height (1/1000″): 182.0
Placement Pressure (grams): 150
Primary Nozzle: 48316018
Alternate Nozzle: 48316018
FJ Primary Nozzle: 48585033
FJ Alternate Nozzle: 48585033
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

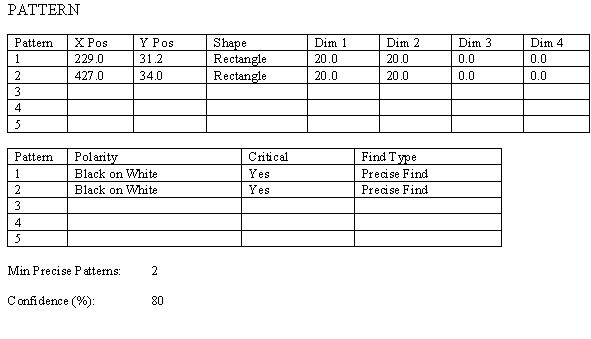

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 5
Flexjet OTHC On-Axis-Lit: 1
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: OTHC/No Preference
Precise Find Search X (1/1000″):
Precise Find Search Y (1/1000″):
Pick Information
Reference X (1/1000″): 290.0
Reference Y (1/1000″): 50.0
Feeder Information
Default Feeder: Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
Flux Information
Dot Size (ml): 0
Speed: 0
Dry Delay (seconds): 0
Settle Delay (seconds): 0
