A1916 (Vision Information)

General Information
Component ID: A1916
Component Type: SOIC
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 491.0
Component Width (1/1000″): 441.0
Body Length (1/1000″): 350.0
Body Width (1/1000″): 441.0
Component Height (1/1000″): 285.0
Placement Pressure (grams): 150
Primary Nozzle: 188F
Alternate Nozzle: 188F
FJ Primary Nozzle: 47717093
FJ Alternate Nozzle: 47717093
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

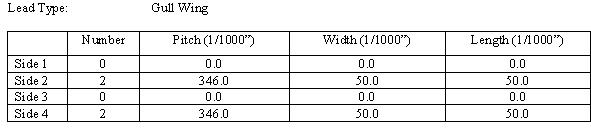

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″):
Lead Tolerance Across Body (1/1000″):
Lead Spacing Tolerance (1/1000″):
Lead Len Positive Tolerance (1/1000″):
Lead Len Negative Tolerance (1/1000″):
Coplanarity Tolerance (1/1000″):
Colinearity Tolerance (1/1000″):
P2P/NCC8 Ligthing Type: Front Lit
P2P/NCC8 Ligthing Level: 0
Flexjet OTHC Front-Lit: 7
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 7
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: Do Not Use
Flexjet OTHC Camera/Mag: OTHC/No Preference
Feeder Information
Default Feeder: Matrix Tray
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
