A1537 (Vision Information)

General Information
Component ID: A1537
Component Type: SOIC
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 906.0
Component Width (1/1000″): 197.0
Body Length (1/1000″): 906.0
Body Width (1/1000″): 117.0
Component Height (1/1000″): 202.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 47995060
FJ Alternate Nozzle: 47995060
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

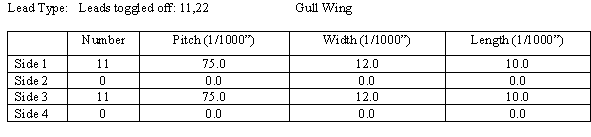

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″):
Lead Tolerance Across Body (1/1000″):
Lead Spacing Tolerance (1/1000″):
Lead Len Positive Tolerance (1/1000″):
Lead Len Negative Tolerance (1/1000″):
Coplanarity Tolerance (1/1000″):
Colinearity Tolerance (1/1000″):
P2P/NCC8 Ligthing Type: Front – Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit: 5
Flexjet OTHC Side-Lit: 5
Flexjet OTHC On-Axis-Lit: 5
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: Standard/4.0 Mil
Flexjet OTHC Camera/Mag: OTHC/2.6 Mil
Feeder Information
Default Feeder: 44mm/12mm Tape
Default Rotation in Feeder (degrees):
Reject Station: Belt Reject
