A1433 (Vision Information)

General Information
Component ID: A1433
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 50.0
Body Width (1/1000″): 65.0
Component Height (1/1000″): 65.0
Placement Pressure (grams): 150
Primary Nozzle: 47995052
Alternate Nozzle: 47995052
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control:

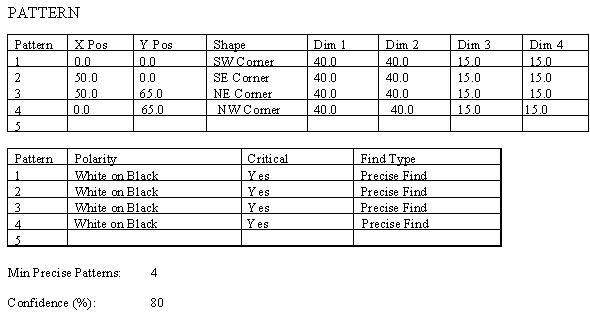

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″): 0.0
Lead Tolerance Y (1/1000″): 0.0
Relative Distance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag:
Precise Find Search X (1/1000″): 10.0
Precise Find Search Y (1/1000″): 10.0
Pick Information
Reference X (1/1000″): 32.5
Reference Y (1/1000″): 32.5
Feeder Information
Default Feeder: 8mm Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
Flux Information
Dot Size (ml): 0
Speed: 0
Dry Delay (seconds): 0
Settle Delay (seconds): 0
