A1427 (Vision Information)

General Information
Component ID: A1427
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 150.0
Body Width (1/1000″): 600.0
Component Height (1/1000″): 408.0
Placement Pressure (grams): 150
Primary Nozzle: User Defined
Alternate Nozzle: User Defined
FJ Primary Nozzle: 47995042
FJ Alternate Nozzle: 47995042
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

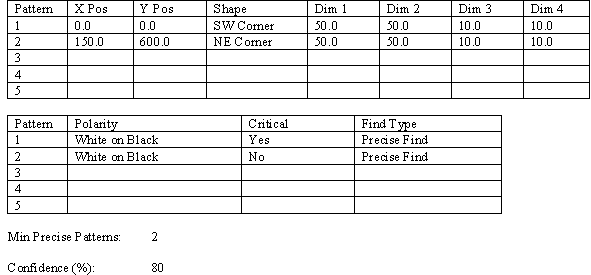

Pattern Information
Vision Information
Pattern Inspection: No
Lead Tolerance X (1/1000″):
Lead Tolerance Y (1/1000″):
Relative Distance (1/1000″):
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit: 5
Flexjet OTHC Side-Lit: 5
Flexjet OTHC On-Axis-Lit: 5
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: Standard/4.0 Mil
Flexjet OTHC Camera/Mag: OTHC/2.6 Mil
Precise Find Search X (1/1000″):
Precise Find Search Y (1/1000″):
Pick Information
Reference X (1/1000″): 85.0
Reference Y (1/1000″): 300.0
Feeder Information
Default Feeder: Track Feeder
Default Rotation in Feeder (degrees):
Reject Station: Belt Reject
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
