A053 (Vision Information)

General Information
Component ID: A053
Component Type: SOIC
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 407.0
Component Width (1/1000″): 187.0
Body Length (1/1000″): 407.0
Body Width (1/1000″): 146.0
Component Height (1/1000″): 187.0
Placement Pressure (grams): 150
Primary Nozzle: 46514091
Alternate Nozzle: 46514091
FJ Primary Nozzle: User Defined
FJ Alternate Nozzle: User Defined
Accuracy: High
Pre-Orient:
FlexJet Tact Control:

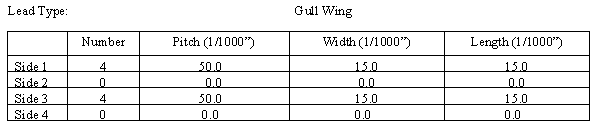

Lead Information
Vision Information
Lead Inspection:
Lead Tolerance From Body (1/1000″): 0.0
Lead Tolerance Across Body (1/1000″): 0.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″):
Colinearity Tolerance (1/1000″):
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 5
Flexjet OTHC Front-Lit:
Flexjet OTHC Side-Lit:
Flexjet OTHC On-Axis-Lit:
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: 4.0 Mil per Pixel
Flexjet OTHC Camera/Mag:
Feeder Information
Default Feeder: 24mm
Default Rotation in Feeder (degrees): 0
Reject Station: Bucket
