80 QFP (Vision Information)

General Information
Component ID: 80_QFP
Component Type: Quads/Flatpack
Description: .980 x .743
.031 Pitch
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 980.0
Component Width (1/1000″): 743.0
Body Length (1/1000″): 784.0
Body Width (1/1000″): 547.0
Component Height (1/1000″): 110.0
Placement Pressure (grams): 250
Primary Nozzle: 51305103
Alternate Nozzle: 51305103
FJ Primary Nozzle: 47561104
FJ Alternate Nozzle: 47561104
Accuracy: Standard
Pre-Orient: Yes
FlexJet Tact Control: Fast

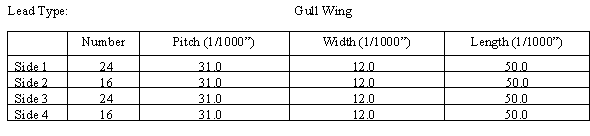

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″): 0.0
Lead Tolerance Across Body (1/1000″): 0.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 2
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: No Preference
Feeder Information
Default Feeder: 100 MATRIX
Default Rotation in Feeder (degrees): 270
Reject Station: Belt Reject
Hot Bar Information
Assembly Number: 0
