32 SOJ (Vision Information)

General Information
Component ID: 32-SOJ
Component Type: SOJ
Description: .825 x .335
.050 Pitch
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 825.0
Component Width (1/1000″): 335.0
Body Length (1/1000″): 825.0
Body Width (1/1000″): 300.0
Component Height (1/1000″): 138.0
Placement Pressure (grams): 150
Primary Nozzle: 45466931
Alternate Nozzle: 45466931
FJ Primary Nozzle: 47561103
FJ Alternate Nozzle: 47561103
Accuracy: Standard
Pre-Orient: No
FlexJet Tact Control: Fast

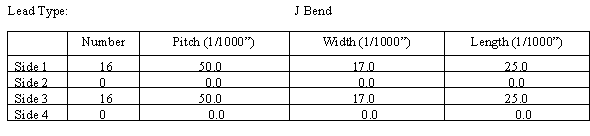

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″): 25.0
Lead Tolerance Across Body (1/1000″): 5.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 4
Flexjet OTHC Front-Lit: 6
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 6
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: No Preference
Feeder Information
Default Feeder: 24mm Tape
Default Rotation in Feeder (degrees): 90
Reject Station: Belt Reject
