304 QFP (Vision Information)

General Information
Component ID: 304_QFP
Component Type: Quads/Flatpack
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 1677.0
Component Width (1/1000″): 1677.0
Body Length (1/1000″): 1574.8
Body Width (1/1000″): 1574.8
Component Height (1/1000″): 163.0
Placement Pressure (grams): 250
Primary Nozzle: 51305103
Alternate Nozzle: 51305103
FJ Primary Nozzle:
FJ Alternate Nozzle:
Accuracy: Standard
Pre-Orient: Yes
FlexJet Tact Control: Fast

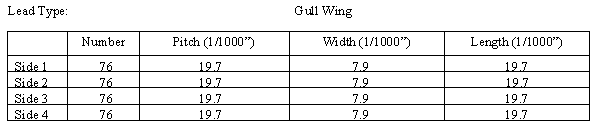

Lead Information
Vision Information
Lead Inspection: Yes
Lead Tolerance From Body (1/1000″): 11.8
Lead Tolerance Across Body (1/1000″): 11.8
Lead Spacing Tolerance (1/1000″): 11.8
Lead Len Positive Tolerance (1/1000″): 19.7
Lead Len Negative Tolerance (1/1000″): 19.7
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 5
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 2
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: Do Not Use
Feeder Information
Default Feeder: 100MATRIX
Default Rotation in Feeder (degrees): 270
Reject Station: Belt Reject
Hot Bar Information
Assembly Number: 0
