2577 CCGA (Vision Information)

General Information
Component ID: 2577 CCGA
Component Type: BGA
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (mm): 52.499
Body Width (mm): 52.499
Component Height (mm): 8.001
Placement Pressure (grams): 150
Primary Nozzle: 48585020
Alternate Nozzle: 48585020
FJ Primary Nozzle: 48585021
FJ Alternate Nozzle: 48585021
Accuracy: Standard
Pre-Orient: Yes
FlexJet Tact Control: Slow

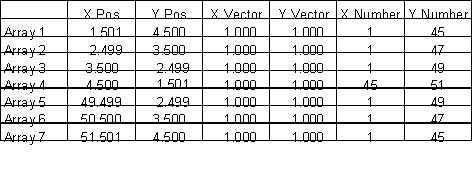

Bump Information
Bump Process: E
Bump Diameter: 0.500
BGA Inspection
All Ball Count: Yes
Pitch Inspection: Yes
Missing Ball Threshold (%): 30
Pitch Tolerance (%): 30
Vision Information
P2P/NCC8 Ligthing Type: On Axis
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 0
Inspection Type: Standard
P2P/NCC8 Camera/Mag: 4mil OAL
Flexjet OTHC Camera/Mag: Do Not Use
Orient Information
Orientation Inspection: No
Orientation Bump X (mm): 0.000
Orientation Bump Y (mm): 0.000
Check For Bump: Present
Pick Information
Reference X (mm): 0.000
Reference Y (mm): 0.000
Feeder Information
Default Feeder: Matrix Tray
Default Rotation in Feeder (degress): 0
Reject Station: Belt Reject
Flux Information
Dot Size (ml): 0
Speed: 0
Dry Delay (seconds): 0
Settle Delay (seconds): 0
