125B (Vision Information)

General Information
Component ID: 125B
Component Type: Pattern
Description: For Reference Only
Line Placement: Not Applicable
Body Information
Body Length (1/1000″): 356.0
Body Width (1/1000″): 236.0
Component Height (1/1000″): 360.0
Placement Pressure (grams): 1000
Primary Nozzle: 45466916
Alternate Nozzle: 45466916
FJ Primary Nozzle: 47561102
FJ Alternate Nozzle: 47561102
Accuracy: Standard
Pre-Orient: Yes
FlexJet Tact Control: Fast

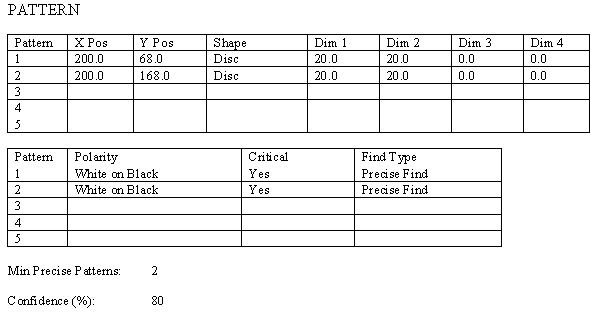

Pattern Information
Vision Information
Pattern Inspection: Yes
Lead Tolerance X (1/1000″):
Lead Tolerance Y (1/1000″):
Relative Distance (1/1000″): 10.0
P2P/NCC8 Ligthing Type: Side-Lit
P2P/NCC8 Ligthing Level: 7
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 0
Inspection Type: High Accuracy
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: No Preference
Precise Find Search X (1/1000″):
Precise Find Search Y (1/1000″):
Pick Information
Reference X (1/1000″): 100.0
Reference Y (1/1000″): 118.0
Feeder Information
Default Feeder: Track 1
Default Rotation in Feeder (degrees):
Reject Station: Manual RS
Flux Information
Dot Size (ml):
Speed:
Dry Delay (seconds):
Settle Delay (seconds):
