100 QFP (Vision Information)

General Information
Component ID: 100_QFP
Component Type: Quads/Flatpack
Description: .678 x .678
.020 Pitch
Line Placement: Not Applicable
Body Information
Component Length (1/1000″): 677.2
Component Width (1/1000″): 677.2
Body Length (1/1000″): 551.2
Body Width (1/1000″): 551.2
Component Height (1/1000″): 75.0
Placement Pressure (grams): 150
Primary Nozzle: 51305103
Alternate Nozzle: 51305103
FJ Primary Nozzle: 47561104
FJ Alternate Nozzle: 47561104
Accuracy: Standard
Pre-Orient: Yes
FlexJet Tact Control: Fast

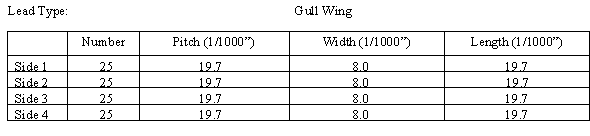

Lead Information
Vision Information
Lead Inspection: No
Lead Tolerance From Body (1/1000″): 0.0
Lead Tolerance Across Body (1/1000″): 0.0
Lead Spacing Tolerance (1/1000″): 0.0
Lead Len Positive Tolerance (1/1000″): 0.0
Lead Len Negative Tolerance (1/1000″): 0.0
Coplanarity Tolerance (1/1000″): 0.0
Colinearity Tolerance (1/1000″): 0.0
P2P/NCC8 Ligthing Type: Front-Lit
P2P/NCC8 Ligthing Level: 5
Flexjet OTHC Front-Lit: 4
Flexjet OTHC Side-Lit: 0
Flexjet OTHC On-Axis-Lit: 2
Inspection Type: High Speed
P2P/NCC8 Camera/Mag: No Preference
Flexjet OTHC Camera/Mag: No Preference
Feeder Information
Default Feeder: 32mm/24mm Tape
Default Rotation in Feeder (degrees): 0
Reject Station: Belt Reject
Hot Bar Information
Assembly Number: 0
